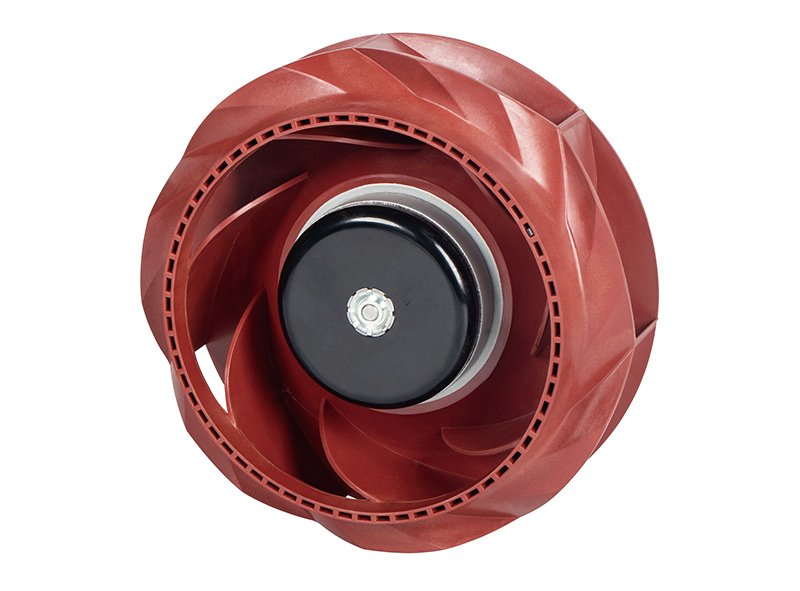

LEIPOLE 175FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling
LEIPOLE 175FLW2HR is an EC centrifugal fan with Ø174.5x69mm size, ball bearing, IP44 rating, and Rotation Detection function. It runs on 230V AC with wide frequency range, designed for reliable thermal management in industrial electrical enclosures and related equipment.
- Part number: 175FLW2HR
- Order code: 2030.010
Product Overview
LEIPOLE 175FLW2HR is a compact centrifugal fan from the FLW series. It delivers stable forced ventilation and consistent heat dissipation for industrial electrical enclosures, small HVAC systems, and power equipment. The integrated structure supports reliable airflow output and continuous operation in industrial environments.
Core Product Features
Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety.
Ball bearing structure reduces operational wear and supports extended service life.
IP44 ingress protection rating, compatible with a wide temperature and humidity range.
Compliant with IEC61858 Grade F insulation standard with stable high withstand voltage performance.
Built-in Rotation Detection (RD) function for real-time operational status monitoring.
CE certified, with wide frequency adaptation for stable power input.
Electrical & Operational Attributes
This fan operates on a 230V AC power supply with wide frequency compatibility for stable performance across different power systems. It runs within a defined power range while delivering strong airflow volume for effective cooling. The unit maintains stable operational noise, with a compact physical profile and manageable weight for flexible mounting and integration. It includes reliable insulation and protection functions for safe continuous industrial use.
Applicable Industries
Suitable for internal cooling and ventilation of industrial control cabinets and electrical enclosures.
Applied in small HVAC systems and local air circulation for workshops and manufacturing facilities.
Used for heat dissipation in power supplies, inverters, and compact industrial electrical equipment.
Provides auxiliary ventilation for communication equipment and cabinet-mounted electronic devices.
Ideal for industrial cooling system retrofits and reliable thermal management upgrades.
Widely implemented in automation equipment, power distribution, EV chargers, renewable energy facilities, and electrical thermal management projects.
| Model | 175FLW2HR |
| Order Code | 2030.010 |
| Dimensions (WxH) | Ø174.5x69mm |
| Motor | Capacitor Start Induction Motor |
| Bearing | Ball |
| Rated Voltage (V) | 230 |
| Frequency (Hz) | 50~400 |
| Input Power (W) | 38.7 Max: 50 |
| Speed (r/min) | 3000 |
| Air Flow (m³/h) | 588 |
| Noise (dB) | 61 |
| Weight (g) | 820 |
| Function | RD |
| Operation temp & humidity range | -30℃~+65℃ (temperature) 0%~95% (humidity) |
| Protection | Motor Internal with automatic recovery thermal protection |
| Withstand Voltage | AC 1,800V, 1 min at 0.5mA, 50/60 Hz |
| Insulation Grade | design according to IEC61858 Grade F |
| Certification | CE |
| IP rating | IP44 |
