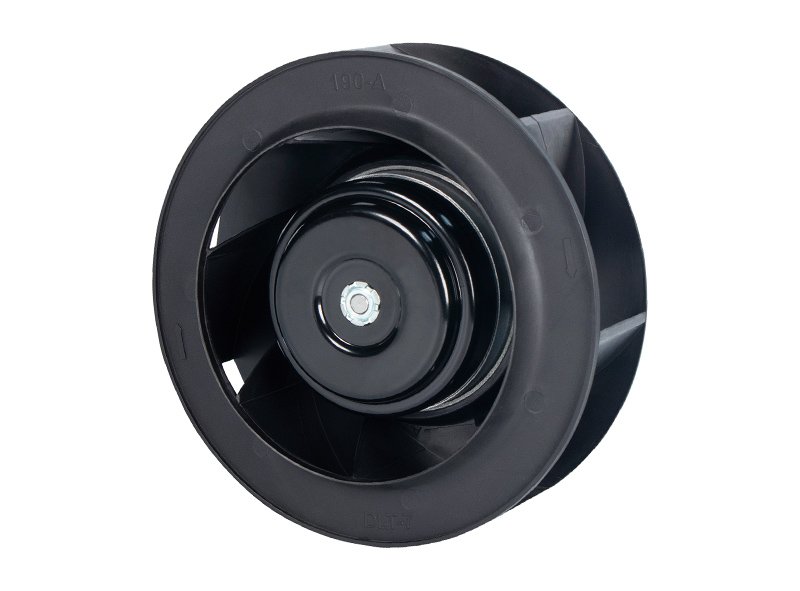

LEIPOLE 190FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

190FLW2HRP/HR EC centrifugal fan, Ø190x105mm, ball bearing, 230V AC, 800m³/h airflow, IP44 protection

LEIPOLE 190FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

LEIPOLE 190FLW2HR is an EC centrifugal fan with Ø190x105mm size, ball bearing, IP44 rating, and Rotation Detection function. It runs on 230V AC with wide frequency range, designed for reliable thermal management in industrial electrical enclosures and related equipment.

Add to cart

Product Overview

LEIPOLE 190FLW2HR is a robust centrifugal fan from the FLW series. It delivers stable forced ventilation and efficient heat dissipation for industrial electrical enclosures, small HVAC systems, and power equipment. The integrated structure ensures consistent airflow and reliable long‑hour operation in demanding industrial environments.

Core Product Features

Capacitor start induction motor with built‑in automatic recovery thermal protection for overload safety.

Ball bearing structure reduces operational wear and supports extended service life.

IP44 ingress protection rating, compatible with a wide temperature and humidity range.

Compliant with IEC61858 Grade F insulation standard with stable high withstand voltage performance.

Built‑in Rotation Detection (RD) function for real‑time operational status monitoring.

CE certified, with wide frequency adaptation for stable power input.

Electrical & Operational Attributes

This fan operates on a 230V AC power supply with wide frequency compatibility for stable performance across different power systems. It runs within a defined power range while delivering strong airflow volume for effective cooling. The unit maintains stable operational noise, with a compact physical profile and manageable weight for flexible mounting and integration. It includes reliable insulation and protection functions for safe continuous industrial use.

Applicable Industries

Suitable for internal cooling and ventilation of industrial control cabinets and electrical enclosures.

Applied in small HVAC systems and local air circulation for workshops and manufacturing facilities.

Used for heat dissipation in power supplies, inverters, and compact industrial electrical equipment.

Provides auxiliary ventilation for communication equipment and cabinet‑mounted electronic devices.

Ideal for industrial cooling system retrofits and reliable thermal management upgrades.

Widely implemented in automation equipment, power distribution, EV chargers, renewable energy facilities, data centers, and electrical thermal management projects.

Product Attribute	Value
190FLW2HR Parameters
Model	190FLW2HR
Order Code	2030.011
Dimensions (WxH)	Ø190x105mm
Motor	Capacitor Start Induction Motor
Bearing	Ball
Rated Voltage (V)	230
Frequency (Hz)	50~400
Input Power (W)	103.6 Max: 132
Speed (r/min)	3600
Air Flow (m³/h)	800
Noise (dB)	72
Weight (g)	1711
Function	RD
Operation temp & humidity range	-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection	Motor Internal with automatic recovery thermal protection
Withstand Voltage	AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade	design according to IEC61858 Grade F
Certification	CE
IP rating	IP44
