Your Complete Guide to Industrial Cabinet Cooling Systems: Are You Choosing the Right One?

Are your essential industrial electronics baking inside their cabinets?

Overheating leads to failures, unexpected downtime, and shorter equipment life, costing you time and money.

Effective cooling isn’t a luxury; it’s a necessity.

An industrial cabinet cooling system, or enclosure thermal management system, removes excess heat from electrical enclosures. Its main job is to keep sensitive components like PLCs, drives, and power supplies within safe operating temperatures, ensuring reliability and preventing premature failure.

Thermal Management Fundamentals:

Core Technologies in Industrial Cooling

Cabinet Cooling Systems

Choosing the right cooling solution can feel overwhelming with all the options out there. I’ve spent years in the field, dealing with everything from simple fan filters to complex air conditioning units. I’ve seen firsthand what happens when cooling is inadequate, and I’ve learned how to select and implement systems that truly protect valuable equipment. Let me share some insights to help you navigate this critical aspect of industrial automation.

Core Cooling Technologies Explained

Understanding the basic technologies is the first step. Each method has its place, depending on the environment and how much heat you need to remove. In my experience, the most common approaches are:

Filter Fans / Fan Filters: This is often the simplest solution. A fan pulls cooler outside air into the cabinet, usually through a filter, pushing warmer internal air out. This works well only when the air outside the cabinet is cooler than the desired temperature inside, and relatively clean. We see various airflow options, and filter design matters. For instance, LEIPOLE’s FKL99 series uses pleated filter mats to reduce airflow resistance, making cooling more efficient. The FKL55 series is another popular choice offering different sizes.
Enclosure Air Conditioners (ACs): These provide active, closed-loop cooling using a refrigerant cycle, just like your home AC. They are ideal when you need to cool the inside temperature below the outside ambient temperature, or when the cabinet must be sealed off from harsh environments (dust, moisture). Many industrial ACs, like LEIPOLE’s LP series, offer high IP ratings (like IP54, meaning protection against dust and splashing water) and sometimes advanced controls via Modbus. They come in various capacities, often from 500W up to 4000W or more.
Heat Exchangers (Air-to-Air / Air-to-Water): These transfer heat from the inside air to an external medium (air or water) without mixing the internal and external air. Air-to-air is great when the inside must stay sealed but ambient air isn’t extremely hot. Air-to-water is very effective if you have a source of chilled water available.

Technology	Mechanism	Pros	Cons	Best Use Case
Filter Fans	Uses ambient air for convective cooling	Low cost, simple installation, low energy use	Ambient must be cool & clean, no sealing (IP limited)	Cool, clean environments, moderate heat loads
Air Conditioners	Refrigerant cycle, active closed-loop cooling	Cools below ambient, seals enclosure (high IP), high capacity	Higher cost, higher energy use, maintenance needed	Hot/dirty environments, high heat loads, sealed cabinet needed
Heat Exchangers	Transfers heat without mixing air streams	Seals enclosure (high IP), moderate cost/energy	Cooling limited by ambient (Air-Air) or water temp (Air-Water)	Sealed cabinet needed, moderate heat loads
Vortex Coolers	Uses compressed air to create cold air	No moving parts, spot cooling, very cold air possible	Requires clean compressed air supply, can be inefficient	Small enclosures, spot cooling needs

Industry-Specific Cooling Challenges:

Tailored Engineering Approaches

Matching Cooling to the Application

The “best” cooling solution heavily depends on the specific industry and application. A dusty factory floor has very different requirements than a climate-controlled data center. I’ve learned you must consider the unique challenges:

Manufacturing/Automation: Environments often contain dust, oil mist, or metal particles. Equipment loads can vary significantly. A sealed solution like a enclosure air conditioner or heat exchanger is often necessary to protect sensitive electronics (PLCs, VFDs) from contamination. Filter fans might work in cleaner areas but require diligent filter maintenance.
Data Centers/Telecom: High heat densities from servers and network gear require significant cooling capacity. Efficiency is crucial due to high energy consumption. While large-scale cooling is primary, cabinet-level solutions might involve high-airflow fans or specialized ACs for targeted cooling.
Energy Storage Systems (ESS): Batteries are very sensitive to temperature. Overheating drastically reduces lifespan and poses safety risks. Cooling systems (often ACs or liquid cooling for large systems) must maintain tight temperature control during charge/discharge cycles.
Food & Beverage: Washdown requirements often necessitate high IP ratings (like IP56 or higher) to protect against high-pressure water jets. Stainless steel enclosures and cooling units are common.

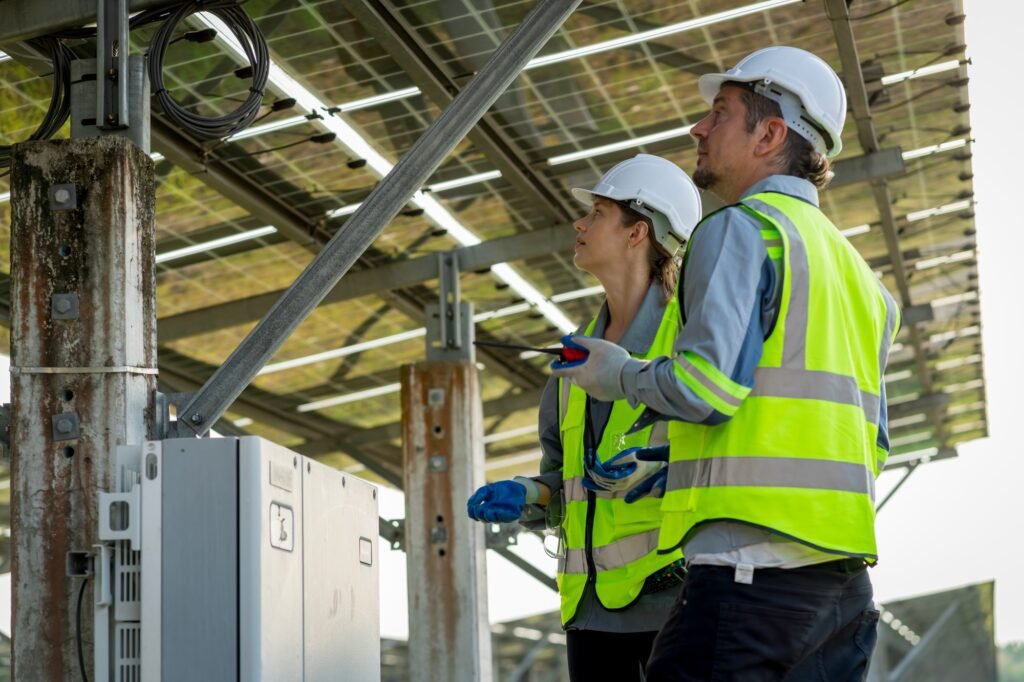

Outdoor Applications (e.g., Renewables energy, Traffic Control): Equipment faces extreme temperature swings (day/night, summer/winter), direct sunlight (solar gain), rain, snow, and dust. Robust, high-IP rated ACs or heat exchangers, often paired with heaters for cold conditions, are typically required.

The key is assessing the Heat Load, Ambient Temperature Range, required IP Rating, and the nature of Environmental Contaminants.

Industry	Common Challenge(s)	Common Solution Type(s)	Key Consideration(s)
Manufacturing	Dust, oil mist, variable loads	ACs, Heat Exchangers, Filter Fans	IP Rating [^4], Filter maintenance [^6], Contaminants
Data Centers	High heat density, efficiency, reliability	High-Airflow Fans, ACs	Cooling Capacity (BTU/W), Energy Efficiency (EER)
Energy Storage	Battery temperature sensitivity, safety	ACs, Liquid Cooling	Precise temp control, Reliability, Safety Standards
Food & Beverage	Washdown, hygiene	High IP ACs, Stainless Steel	IP Rating (IP56+), Material compatibility
Outdoor/Renewables	Extreme temps, solar gain, weather, dust	Robust ACs, Heat Exchangers, Heaters	Wide operating temp range, IP Rating, UV resistance

Engineering the Optimal Cooling Solution

Best Practices for Selection and Implementation

Choosing and installing the right system involves more than just picking a product from a catalog. It requires some calculation and planning. Here’s my approach:

Calculate the Heat Load: This is the most critical step. You need to sum up the heat dissipated inside the cabinet by all components (PLCs, drives, power supplies, etc. – usually found in datasheets). Don’t forget external factors like solar gain if the cabinet is exposed to sunlight. Getting this wrong means the system will either fail to keep up or be oversized and wasteful.
Determine Required Internal Temperature: What is the maximum allowable operating temperature for the most sensitive component in the cabinet? Aim to keep the internal temperature comfortably below this limit.
Assess Ambient Conditions: What are the typical and maximum expected temperatures outside the cabinet where it will be installed? This, along with the required internal temperature, dictates the technology. If ambient is consistently cooler than needed inside, fans might work. If ambient is hotter, or the cabinet must be sealed, you need an AC or heat exchanger.
Select Technology & Size: Based on the heat load, ambient conditions, and required internal temp (the ΔT), choose the appropriate technology. Then, size it correctly (in BTU/h or Watts). Always add a safety margin (e.g., 10-25%) but avoid massive oversizing. LEIPOLE ACs, for example, specify cooling capacity at different conditions (like L35/L35 vs L35/L55).
Consider Placement & Airflow: Mount the cooling unit correctly (side, door, roof) as per manufacturer instructions. Ensure good airflow within the cabinet. Avoid blocking vents, manage cabling neatly, and consider internal circulation fans or baffles to eliminate hot spots. Top ventilators can also help exhaust rising hot air.
Plan for Maintenance: Filter fans need regular filter inspection and replacement. AC units need periodic checks of coils, fans, and condensate drains. Build this into your maintenance schedule.

Step	Description	Why It’s Important	Tip
1. Calculate Heat Load	Sum internal component heat + external factors	Determines required cooling capacity	Use component datasheets; account for duty cycles if applicable.
2. Define Target Temp	Max allowable temp for sensitive components	Protects equipment from heat damage	Check all component specs; use the lowest maximum temp.
3. Assess Ambient	Measure/determine max external temperature	Dictates if fans are viable vs. ACs/Heat Exchangers	Consider worst-case conditions (hottest day, full sun).
4. Select & Size Unit	Choose technology based on ΔT; size based on load	Ensures effective cooling without wasting energy	Use manufacturer sizing tools; add a safety margin (10-25%).
5. Plan Airflow	Proper unit mounting; clear paths inside cabinet	Prevents hot spots, ensures even cooling	Manage cables; don’t block vents; consider internal fans.
6. Schedule Maintenance	Regular filter changes [^6], AC checks [^3], cleaning	Maintains cooling efficiency and system longevity	Follow manufacturer recommendations; keep spare filters handy.

Conclusion

Effective industrial cabinet cooling is crucial for protecting your investments and ensuring smooth operations. By understanding the core technologies, considering industry-specific challenges, and following best practices for selection and implementation, you can engineer a reliable thermal management solution.
