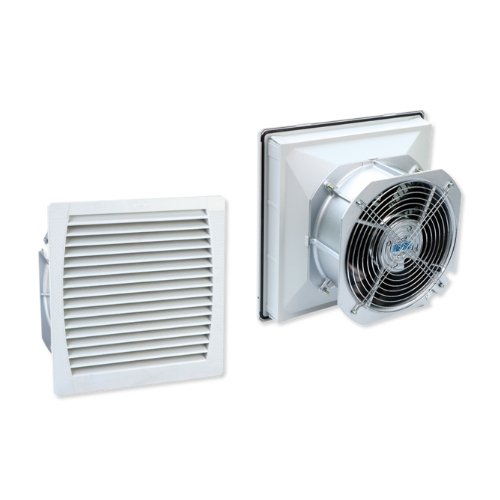

Slim Industrial Fan 1050m³/h (618CFM) Cabinet | FKL5526.230

Request a quoteWhatsApp us
Designed for superior cooling efficiency, LEIPOLE’s FKL55 series features a slim, sleek housing that can be seamlessly integrated into a variety of chassis settings. Combining advanced airflow technology with energy-saving design, this series is ideal for chassis thermal management systems, providing powerful cooling performance while minimizing energy consumption.
  • Part number: FKL5526.230
  • Order code: 2025.016/2025.040
  • Color code: RAL7035/RAL7032

Model selection

Use the model-specific supply, airflow and filter data below. Confirm the fan operating point against enclosure and filter resistance, and use the matching filter media and mounting instructions. Contact technical support for application requirements and model-specific certification.

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 Part Number FKL5526.230
2 Color RAL7035/RAL7032
3 Order Code 2025.016/2025.040
4 Fan Model F2E-260B-230
5 Rate Voltage 230V AC
6 Air Flow 450/500 m³/h (IP54)
7 Rated Current 0.32/0.30 A
8 Power 64/71 W
9 Motor Type Electric Capacitance
10 Noise Level 62/64 dB
11 Exit Filter FKL5526.300
12 Dimension 320x320mm
13 Cut-out Size 292mm x 292mm
