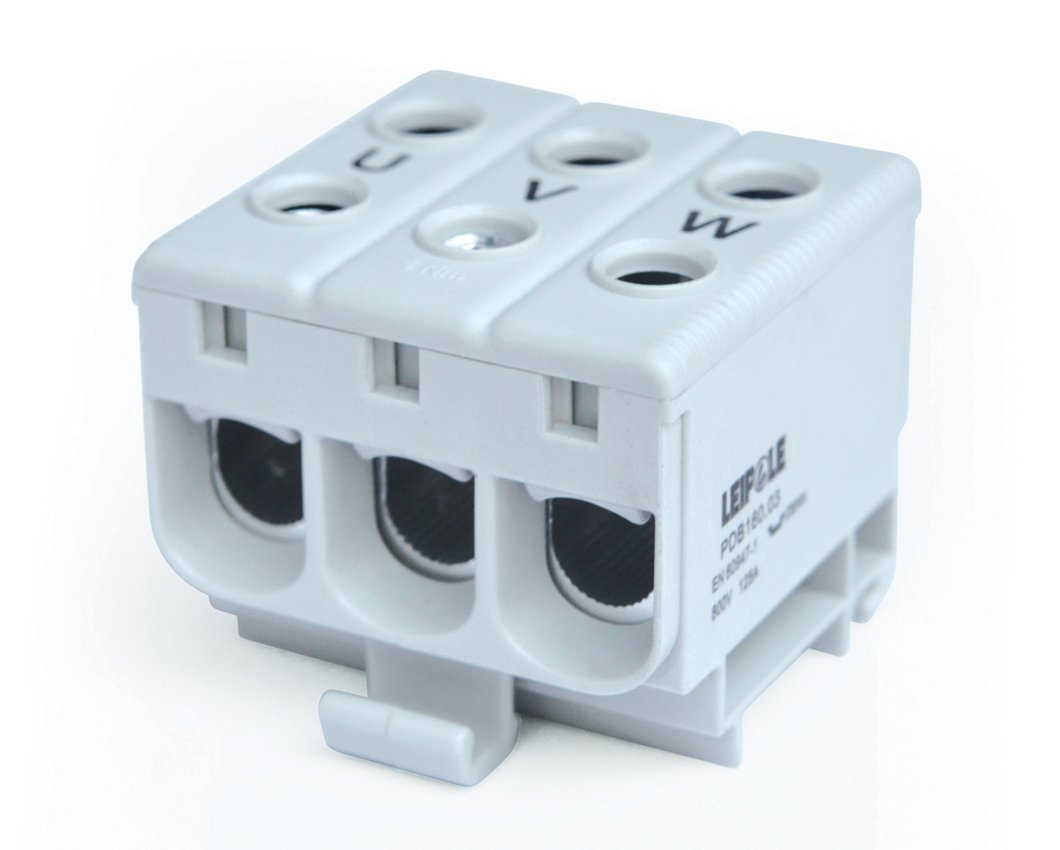

LEIPOLE PDB 160.03 power distribution block, PA66 material, IP20 protection, screw connection for electrical enclosures

LEIPOLE PDB 160.03 Power Distribution Block Industrial 125A 800V

Name: LEIPOLE PDB 160.03 Power Distribution Block Industrial 125A 800V
Brand: LEIPOLE
Availability: InStock

LEIPOLE PDB 160.03 power distribution block comes with PA66 construction and IP20 rating, rated at 125A 800V. It is compatible with Cu 2.5-50mm² and Al 6-50mm² conductors, meets IEC 60947-7-1 standards, and fits industrial power distribution tasks.

Add to cart

Product Overview

The LEIPOLE PDB 160.03 power distribution block is made of PA66 material with IP20 ingress protection. It conforms to IEC 60947-7-1 standards and supports copper and aluminum conductor connections for stable power distribution in electrical control systems.

Key Features & Advantages

PA66 housing for industrial electrical applications
IP20 protection level for safe operation
Works with Cu 2.5-50mm² and Al 6-50mm² conductors
Standard screw connection for secure wiring
DIN rail mountable for easy integration in electrical cabinets

Applications

This power distribution block delivers stable power connection and reliable wiring for ventilation systems, refrigeration units, industrial machinery, and transportation equipment. It also supports consistent power distribution for electromobility, renewable energy installations, air conditioning systems, ICT electronics, heating devices, medical equipment, and data center enclosures.

Product Attribute	Value
PDB 160.03 Parameters
Model	PDB 160.03
Product Type	PDB Terminal
Material	PA66
IP Rating	IP20
Order Number	5012.141
Connection Standard	IEN 60947-7-1
Rated Current (A)	125
Rated Voltage (V)	800
Cross Section	Cu 2.5-50mm² / Al 6-50mm²
