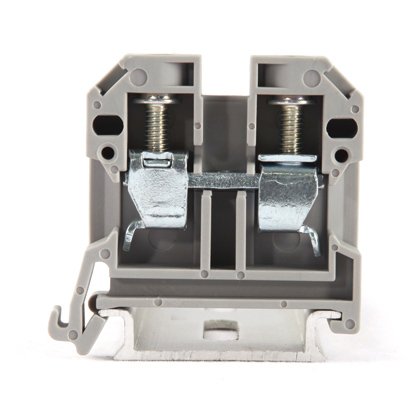

LEIPOLE JXB-10/35/JXB-10/35-BU screw connection terminal block, DIN rail mount, 0.5–10mm² cross section, industrial wiring component

LEIPOLE JXB-10/35/JXB-10/35-BU Terminal Blocks, Industrial Electrical Connection, 61A 750V

LEIPOLE JXB-10/35/JXB-10/35-BU terminal blocks provide reliable industrial electrical connections with 61A/750V ratings, 0.5–10mm² wire capacity, UL 94 V0 flame resistance and stable screw connections. They fit standard DIN rails and are widely used in manufacturing, automation and power distribution systems.

  • Part number: JXB-10/35/JXB-10/35-BU
  • Order code: 1011.071/1011.078
Add to cart

Product Overview

LEIPOLE JXB-10/35/JXB-10/35-BU terminal blocks are industrial-grade electrical connection units produced in line with IEC 60947-7-1 standards. They adopt a secure screw connection structure, with rational dimension design for stable power transmission and organized wiring in industrial electrical applications.

Key Features & Advantages

  • Rated 61A/750V, supports wire cross-section range from 0.5mm² to 10mm²
  • UL 94 V0 inflammability class ensures high safety in industrial working environments
  • Standard screw connection delivers stable contact and long service life
  • Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for versatile installation
  • Equipped with matched end covers, jumper bars, end clamps and marking labels for complete configuration

Typical Applications

  • Manufacturing machinery and production line electrical systems
  • Industrial automation control and drive cabinets
  • Medium-power distribution cabinets and electrical enclosures
  • Electrical control panels for industrial equipment
  • General industrial power wiring and circuit management
Product Attribute Value
JXB-10/35 / JXB-10/35-BU Parameters
Model JXB-10/35 / JXB-10/35-BU
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Order Number 1011.071 / 1011.078
Size T10×H45×W45
Rated Current/Rated Voltage 61A / 750V
Cross Section 0.5~10mm²
Connection Type Screw Connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
