LEIPOLE JDIK 1.5-LA DIN rail terminal block with screw connection for industrial control wiring

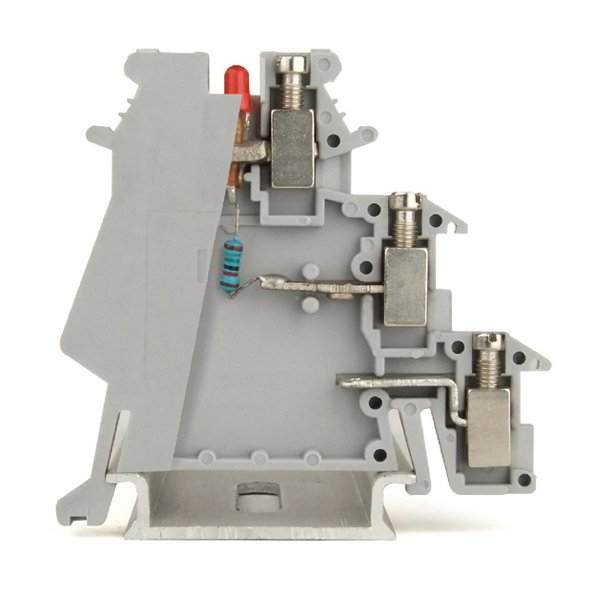

LEIPOLE JDIK 1.5-LA Feed-through Terminal Block

Name: LEIPOLE JDIK 1.5-LA Feed-through Terminal Block
Brand: LEIPOLE
Availability: InStock

LEIPOLE JDIK 1.5-LA is a practical DIN rail feed-through terminal block with reliable screw connection. It adopts standard industrial flame retardant materials and compact structure, perfectly adapting to low-voltage distribution and control circuit wiring, offering stable connection and high cost performance for industrial wiring projects.

Add to cart

Product Overview

LEIPOLE JDIK 1.5-LA is a standard DIN rail mounting feed-through terminal block with screw connection. It is professionally applied to industrial low-voltage distribution and control circuits, adopting standard insulating and conductive materials to ensure stable and safe circuit connection in conventional industrial working conditions.

Key Features & Advantages

Standard screw clamping structure for firm wire connection
Flame retardant insulating housing for enhanced electrical safety
Modular DIN rail design for quick installation and combination
Compact size, suitable for intensive cabinet wiring
Steady conductive performance for long-term working

Typical Applications

Internal wiring and circuit transfer of industrial control cabinets
Daily connection of automation equipment control circuits
Wiring and distribution for electrical control panels
General mechanical equipment internal circuit arrangement
Conventional low-current industrial wiring scenarios

Product Attribute	Value
JDIK 1.5-LA Parameters
Model	JDIK 1.5-LA
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Zack Strip	ZB6
Order Number	1010.060
Size	T6.2×H55.5×W56
Rated Current/Rated Voltage	26A/250V
Cross Section	0.2~4mm²
Connection Type	screw connection
