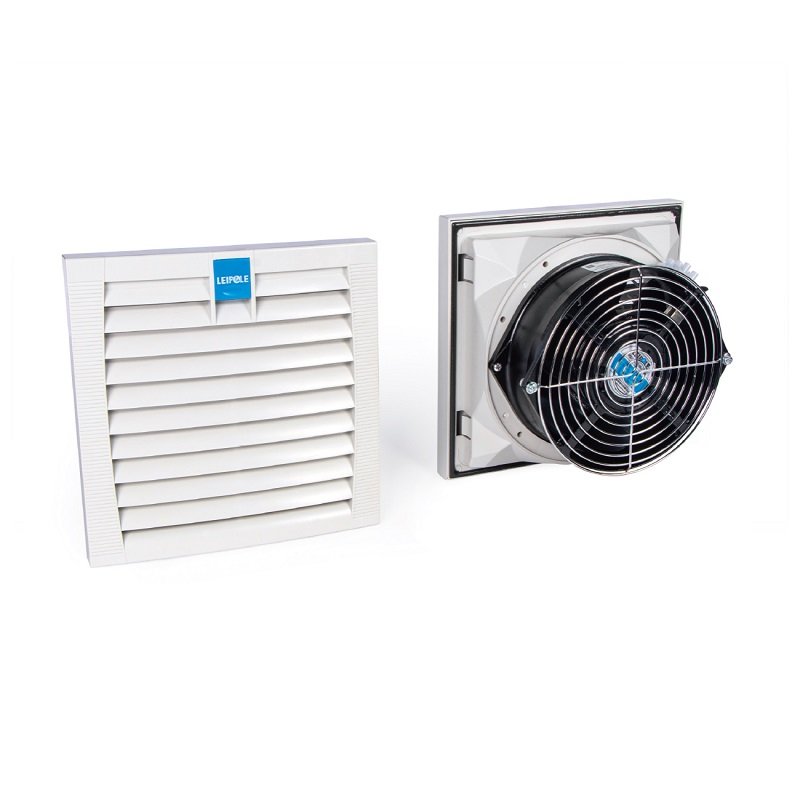

LEIPOLE FKL9923-162.024 fan filter, RAL7035, 204x204mm, DC motor, G4 filter media

LEIPOLE FKL9923-162.024 Fan Filter for Industrial Enclosure, 24V DC, IP55

Crafted for cabinet thermal control applications, the LEIPOLE FKL9923-162.024 fan filter (FKL99 series) boasts upgraded airflow capacity and ultra-low resistance for reliable enclosure temperature regulation.

  • Part number: FKL9923-162.024
Add to cart
LEIPOLE FKL9923-162.024 belongs to the FKL99 series fan filter, designed for enclosure thermal management with optimized airflow and low resistance performance.

Components

  • Filter media: G4 High-efficiency filtration media, MATL9923(8011.255)
  • Exit filter: FKL9923.300 (2023.009)

Features

  • Uses pleated filter mat to minimize airflow resistance
  • Fits standard industrial enclosure thermal management setups
  • Delivers consistent cooling performance within stated temperature range
LEIPOLE FKL9923-162.024 belongs to the FKL99 series fan filter, designed for enclosure thermal management with optimized airflow and low resistance performance.
Product Attribute Value
FKL9923-150/162 Basic Parameters
Color RAL7035
Protection Class IP55
Max Air Flow 370m³/h
Dimensions(W×H) 204×204mm
Cutout Size 185×177mm, Mounting Hole Ø4.5mm
Type FKL9923-162.024
Fan Model F2E-162B-024
Rated Voltage(V/Hz) 24(DC)
Air Flow(IP20) 290m³/h
Air Flow(IP55) 110m³/h
Motor Type DC Motor
Rated Current(A) 0.30
Power(W) 6.72
Noise Level(dB) 48/53
Operating Temp Range -10℃ ~ +55℃
Outlet Filter FKL9923.300
Filter Material 161×166×14mm, G4, V2, MATL9923(8011.255)
