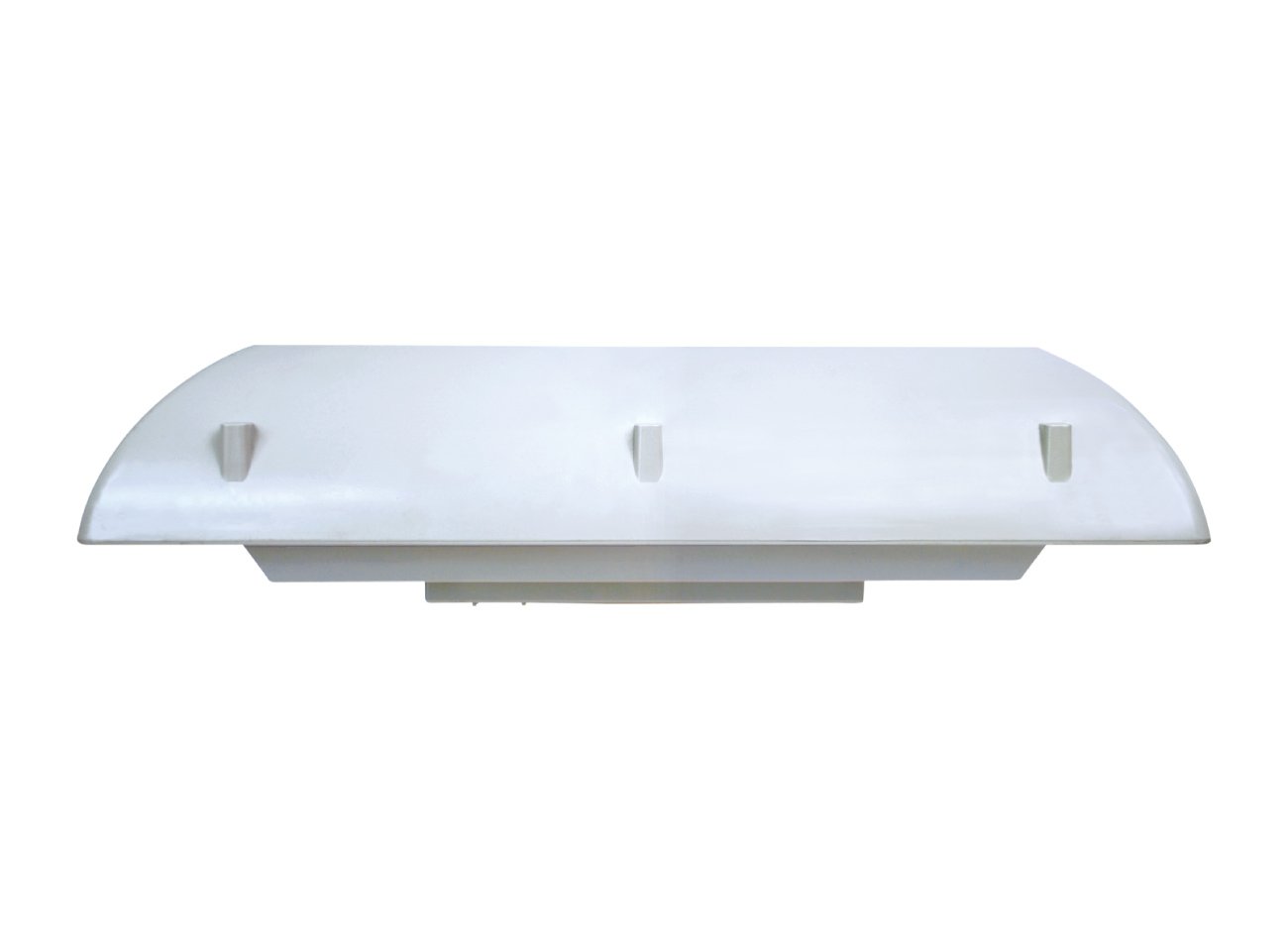

LEIPOLE F2E220-230-DSP DSP Series Top-Mount Axial Filter Fan, UL94-V2, 230V
DSP series top-mounted axial enclosure filter fan with UL94-V2 flame retardant rating, 230V AC capacitive motor, 860-900m³/h airflow, 400x350x103mm size, customizable inlet filters, -10℃ to +55℃ operating range for industrial cabinet cooling.
- Part number: F2E220-230-DSP
- Order code: 2017.008
- Color code: RAL7035
Product Overview
LEIPOLE F2E220-230-DSP is a top-mounted axial filter fan belonging to the DSP series. It is purpose-built for efficient heat evacuation and dust contamination isolation inside medium-to-large industrial electrical enclosures. Its dedicated downward axial ventilation structure steadily expels internal accumulated heat, blocks ambient particulate pollutants, and maintains stable operational conditions to extend the service lifespan of enclosed power and electronic components.
Core Product Features
- Uniform exterior color finish: RAL7035, fully matching mainstream industrial cabinet aesthetic matching requirements
- UL94-V2 flame retardant material rating, which greatly improves safety performance and restricts flame spread under high-temperature abnormal industrial working conditions
- Unified overall dimension of 400x350x103mm, with standardized mounting hole specifications for universal top-position enclosure installation compatibility
- Equipped with dedicated M2E09202-AF electric capacitance axial fan motor for reliable long-duration continuous industrial operation
- Flexible customizable air inlet filter configuration, with adjustable filter quantity and dimensional specifications adaptable to on-site ambient dust environment severity
- Robust mechanical structural durability supporting unattended 24/7 continuous duty in industrial production scenarios
Electrical & Operational Attributes
- Compliant with European mainstream AC power grid standard, rated power input at 230V, 50/60Hz
- Capacitance-start axial motor architecture ensures stable continuous operation for medium-high heat load enclosure thermal management demands
- Optimized free-blowing airflow capacity of 860/900m³/h targets moderate-to-high heat generation cabinet heat dissipation scenarios
- Controlled operational noise level suitable for indoor industrial workshops and power equipment room deployment
- Stable operating temperature range from -10℃ to +55℃, adapting to seasonal ambient temperature fluctuations on industrial sites
Applicable Industries
This DSP series filter fan covers thermal management demands across extensive industrial application scenarios:
- Heavy machinery and automated production line control cabinet internal cooling and dust isolation
- Electromobility infrastructure, thermal regulation of EV power distribution and charging station enclosure units
- Renewable energy facilities, protecting internal control components of solar inverter and wind power equipment cabinets
- Industrial air conditioning and heating system central control enclosure ventilation
- Medium-high power ICT electronic cabinets and industrial power device housing thermal management
- Legacy industrial enclosure ventilation system retrofitting and upgrading projects
| Model | F2E220-230-DSP |
| Order number | 2017.008 |
| Motor model | M2E09202-AF |
| Rated voltage (V / Hz) | 230/50/60 |
| Air flow, free blowing | 860/900 m³/h |
| Axial Fan | Electric capacitance |
| Rated current (A) | 0.51/0.55 |
| Power (W) | 105/123 |
| Noise level (dB) | 73/74 |
| Operating temperature range | -10°C to +55°C |
| Remarks | The number of air inlet filter, size according to the specific circumstances. |
