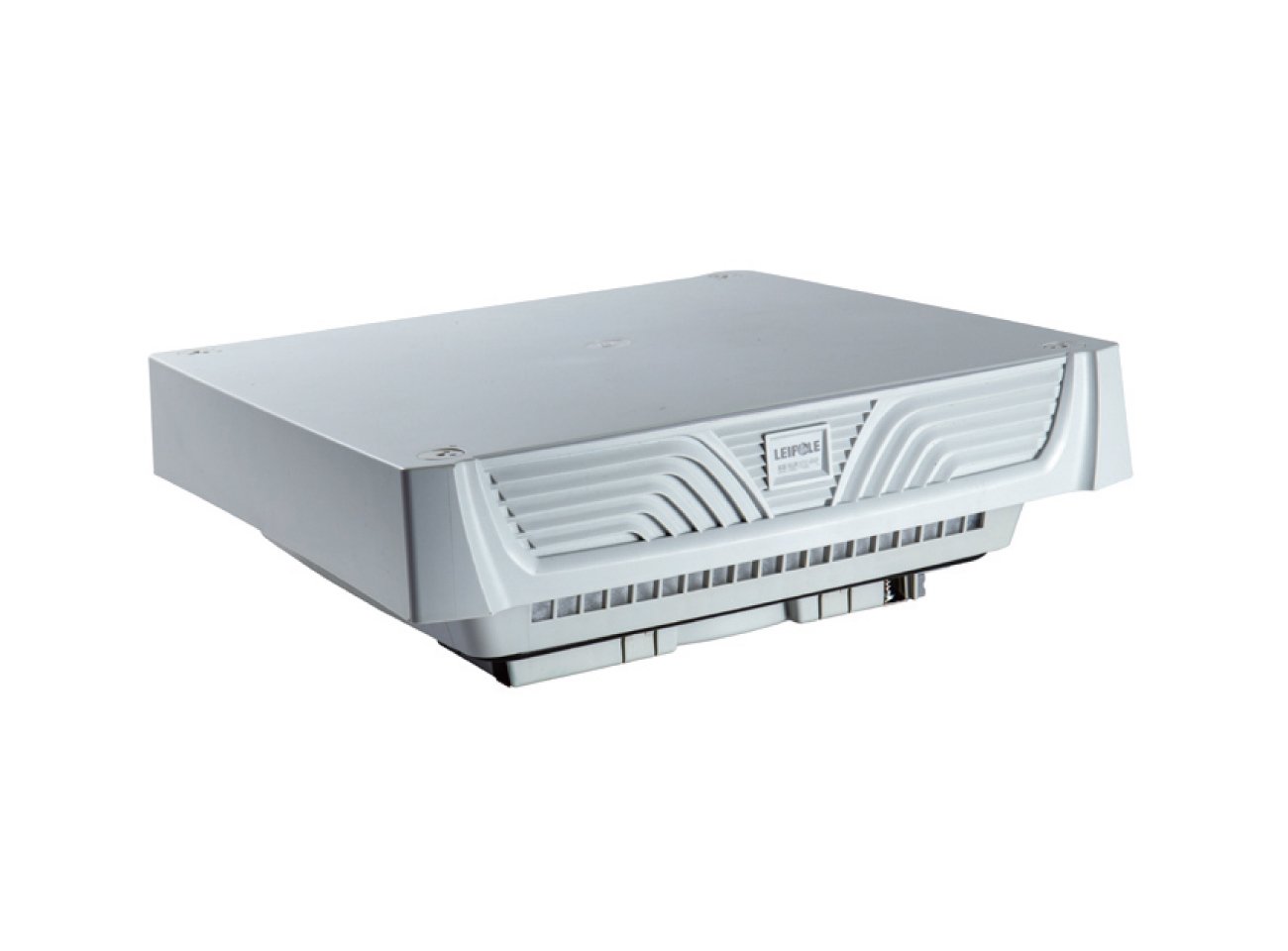

LEIPOLE F2E190-230-DVP DVP Series Centrifugal Filter Fan, IP22/IP55, 230V
DVP series centrifugal enclosure filter fan with IP22/IP55 dual protection, 230V AC 50/60Hz power supply, 570-620m³/h airflow output, 400x400x135mm dimensions, compatible with FKL6626.300 exhaust filter, wide operation and storage temperature range for industrial cabinet cooling.
- Part number: F2E190-230-DVP
- Order code: 2017.018 / 2017.023
- Color code: RAL7035 / RAL7032
Product Overview
LEIPOLE F2E190-230-DVP belongs to the DVP series top-mounted centrifugal filter fan, designed for efficient thermal management and dust isolation inside industrial electrical enclosures. Its dedicated centrifugal ventilation structure realizes stable internal heat evacuation and ambient particle blocking, safeguarding enclosed electrical components from thermal overload and contamination damage.
Core Product Features
- Dual optional exterior color finishes: RAL7035 and RAL7032, adaptable to diversified industrial cabinet aesthetic matching requirements
- Dual ingress protection grades of IP22 and IP55, providing adjustable defense against dust intrusion and water splash under different operational scenarios
- Unified overall dimension of 400x400x135mm, with standard 258x258mm panel cut-out size for universal top-position enclosure installation
- Built with capacitive centrifugal fan motor for steady continuous industrial operation
- Matched dedicated exit filter model FKL6626.300 to form complete closed-loop enclosure ventilation system
- Wide adaptive temperature span for both operation and storage, maintaining stable performance under extreme ambient environment fluctuations
Electrical & Operational Attributes
- Rated power input: AC 230V, 50/60Hz, with adaptive voltage range of 200~240AC
- Capacitive motor architecture supports reliable long-duration 24/7 unattended industrial continuous duty
- Differentiated airflow output corresponding to IP22 and IP55 protection levels for targeted heat dissipation demands
- Controlled operational noise performance for indoor industrial equipment room deployment
- Broad operating temperature range from -20℃ to +55℃, with storage temperature adaptability of -25℃ to +70℃
Applicable Industries
This DVP series centrifugal filter fan meets thermal management demands across extensive industrial application scenarios:
- Automated machinery and production system control cabinet cooling
- Electromobility infrastructure, for thermal regulation of EV power distribution and charging enclosure units
- Renewable energy facilities, protecting internal components of solar inverter and wind energy control cabinets
- Industrial air conditioning and heating system central control enclosure ventilation
- Medium-power ICT electronic cabinets and industrial power device housing thermal management
- Industrial equipment retrofitting projects for legacy enclosure ventilation system upgrading
| Model | F2E190-230-DVP |
| Order number | 2017.018/2017.023 |
| Rated voltage (V / Hz) | 230AC-50/60 |
| Voltage range (V) | 200~240AC |
| Air flow, free blowing (IP22) | 570/620 m³/h |
| Air flow, free blowing (IP55) | 430/465 m³/h |
| Rated current (A) | 0.33/0.32 |
| Power (W) | 69/73 |
| Size (WxHxL mm) | 400x135x400 |
| Hole size (mm) | 258×258 |
| Centrifugal fan | Capacitive motor |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -25°C to +70°C |
| Noise level (dB) | 71 |
| With exit filters | FKL6626.300 |
