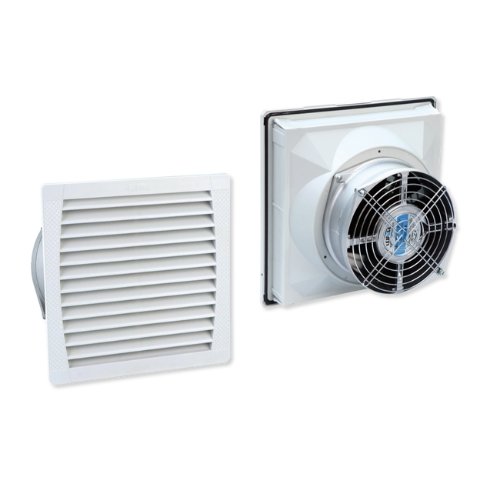

Ultra-Thin Cooling Fan 380m³/h (224CFM) Industrial | FKL5525-162.115
- Part number: FKL5525-162.115
- Order code: 2025.013/2025.037
- Color code: RAL7035/RAL7032
Model selection
Use the model-specific supply, airflow and filter data below. Confirm the fan operating point against enclosure and filter resistance, and use the matching filter media and mounting instructions. Contact technical support for application requirements and model-specific certification.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Product Attribute | Value |
|---|---|---|---|---|---|---|
| 1 | Part Number | FKL5525-162.115 | ||||
| 2 | Color | RAL7035/RAL7032 | ||||
| 3 | Order Code | 2025.013/2025.037 | ||||
| 4 | Fan Model | F2E-162B-115 | ||||
| 5 | Rate Voltage | 115V AC | ||||
| 6 | Air Flow | 200/235 m³/h (IP54) | ||||
| 7 | Rated Current | 0.53/0.41 A | ||||
| 8 | Power | 36/34 W | ||||
| 9 | Motor Type | Shaded-Pole Motor | ||||
| 10 | Noise Level | 48/53 dB | ||||
| 11 | Exit Filter | FKL5525.300 | ||||
| 12 | Dimension | 250x250mm | ||||
| 13 | Cut-out Size | 224mmx224mm |
