LP800A135 busbar connecting terminal, rated 800A for flat busbars and double-T profiles

LEIPOLE LP800A135 3-Pole Busbar Connection Terminal, 630A, for 20×5–30x10mm Busbars

Name: LEIPOLE LP800A135 3-Pole Busbar Connection Terminal, 630A, for 20x5–30x10mm Busbars
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

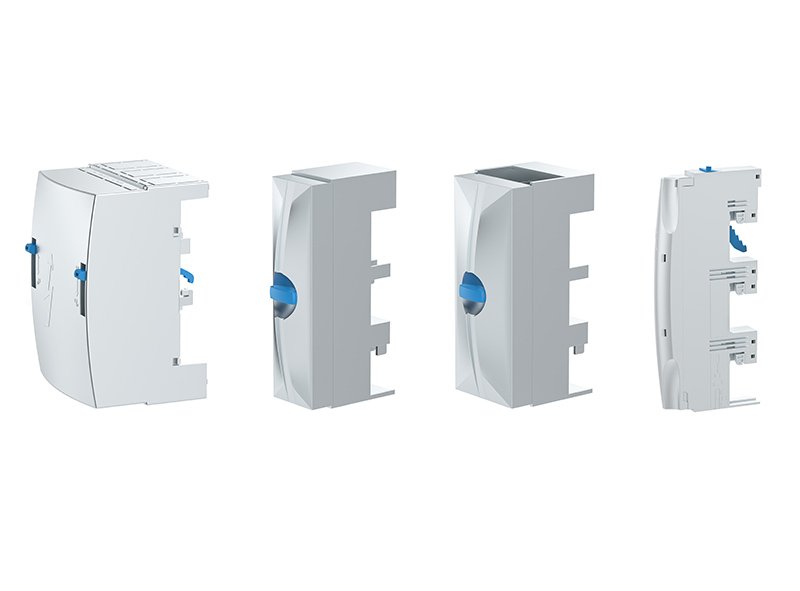

LP800A135 is a 3‑pole busbar connection terminal with cover cap, compatible with 20×5–30x10mm busbars and double‑T / triple‑T sections. It supports Cu and Al conductors and provides up to 630A rated current for stable industrial power distribution.

Add to cart

Product Overview

LP800A135 is a 3‑pole connection terminal plate designed for 20×5–30x10mm busbars, double‑T and triple‑T sections. It is supplied with a cover cap, supports copper and aluminum conductors, and offers a rated current of up to 630A. The unit measures 135x200mm.

Key Features & Advantages

3‑pole design with protective cover cap
Compatible with 20×5–30x10mm flat busbars, double‑T and triple‑T profiles
Supports copper and aluminum conductor connections
Rated current up to 630A
Dimensions: 135x200mm
Stable mechanical and electrical connection

Applications

Industrial power distribution and machinery control systems
Renewable energy stations, automation equipment, and electrical cabinets
Data centers, HVAC systems, and factory electrical retrofitting
Transportation electrification and heavy‑duty electrical components

</> </tbody>

Product Attribute	Value
LP800A135 Parameters
Model	LP800A135
Order code	5010.054
Type	Connecting terminal plate, 3-pole, for 20×5-30x10mm and double-T and triple-T section, with cover cap
Application	For use up to max. 32×20 flat busbars
Size (W x H)	135×200
Max. current	630A
Packing	1
Note	Minimum opening space connecting clamp
