LP17251-6.0 EC Master fan controller with dual-channel control and temperature adjustment function

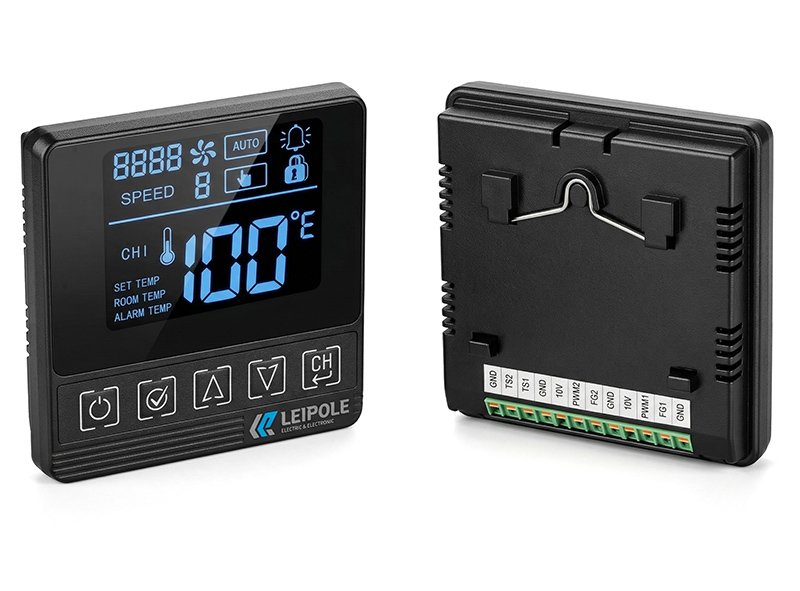

LEIPOLE LP17251-6.0 EC Master™ Intelligent Dual-Channel Fan Speed Controller

EC Master™ dual-channel intelligent fan controller LP17251-6.0, DC wide voltage input, PWM speed control, 0~70℃ temperature regulation range, multi-alarm protection, simultaneously controls two fan groups for industrial cooling system intelligent management.

  • Part number: LP17251-6.0
  • Order code: 2021.015
Add to cart

Product Overview

LEIPOLE LP17251-6.0 is an EC Master™ intelligent dual-channel fan controller. After presetting target temperature parameters, its built-in temperature sensor collects real-time ambient temperature data of the heat dissipation area. The internal chip completes logical operation and automatically adjusts fan speed according to real-time temperature for intelligent thermal management. It supports simultaneous independent control of two separate fan groups, meeting diversified industrial cooling system intelligent control demands.

Core Product Features

  • Dual-channel control architecture, capable of driving and regulating two independent fan groups at the same time
  • PWM square wave control mode with 1KHz frequency range, matching EC fan speed regulation system perfectly
  • Built-in comprehensive multi-alarm protection mechanism: FG abnormal, KR relay abnormal, over-temperature, RD-H/RD-L abnormal status alarm
  • Complete temperature adaptation parameters with 9 matching levels for flexible customized temperature-speed curve setting
  • Stable wide operating environment adaptation, with reliable low-temperature and high-temperature storage performance

Electrical & Operational Attributes

  • Voltage specification: DC 10V ±10% / DC 12V / DC 8V ±10% (Input/Maximum/Start-up Voltage)
  • Current specification: 0.2A ±10% / 0.3A ±10% / 0.1A ±10% (Rated/Maximum/Start-up Current)
  • Speed detection: Square wave signal, FG frequency calculated every 5 seconds
  • Adaptable motor pole pairs: 2, 3, 4, 5, 6, 7, 8, 9
  • Temperature control range: 0~70℃
  • Ambient operating temperature: -15~55℃
  • Storage temperature range: -40~60℃

Applicable Industries

This intelligent fan controller fits thermal control scenarios across extensive industrial applications:
  • Industrial electrical cabinet and power enclosure EC fan intelligent cooling system
  • Inverter, energy storage equipment and high-power device thermal management control
  • Automation production line and communication base station fan speed automatic regulation
  • Precision industrial equipment constant temperature ventilation system retrofitting
  • EC fan matching intelligent control unit upgrading projects
Product Attribute Value
LP17251‑6.0 Parameters
Model LP17251‑6.0
Order Number 2021.015
Input/Maximum/Start‑up Voltage DC 10V±10% / DC 12V / DC 8V±10%
Rated/Maximum/Start‑up Current 0.2A±10% / 0.3A±10% / 0.1A±10%
Control Method PWM Square Wave
Speed Sensor Square Wave Signal
Frequency Range 1KHz
FG Input Frequency Calculated every 5 seconds
Number of Pole Pairs 2, 3, 4, 5, 6, 7, 8, 9
Alarm Method FG Abnormal/KR Relay Output Abnormal/Temperature Abnormal/RD‑H Alarm Abnormal/RD‑L Alarm Abnormal
Temperature Control Range 0‑70℃
Operating Ambient Temperature -15‑55℃
Storage Temperature -40‑60℃
