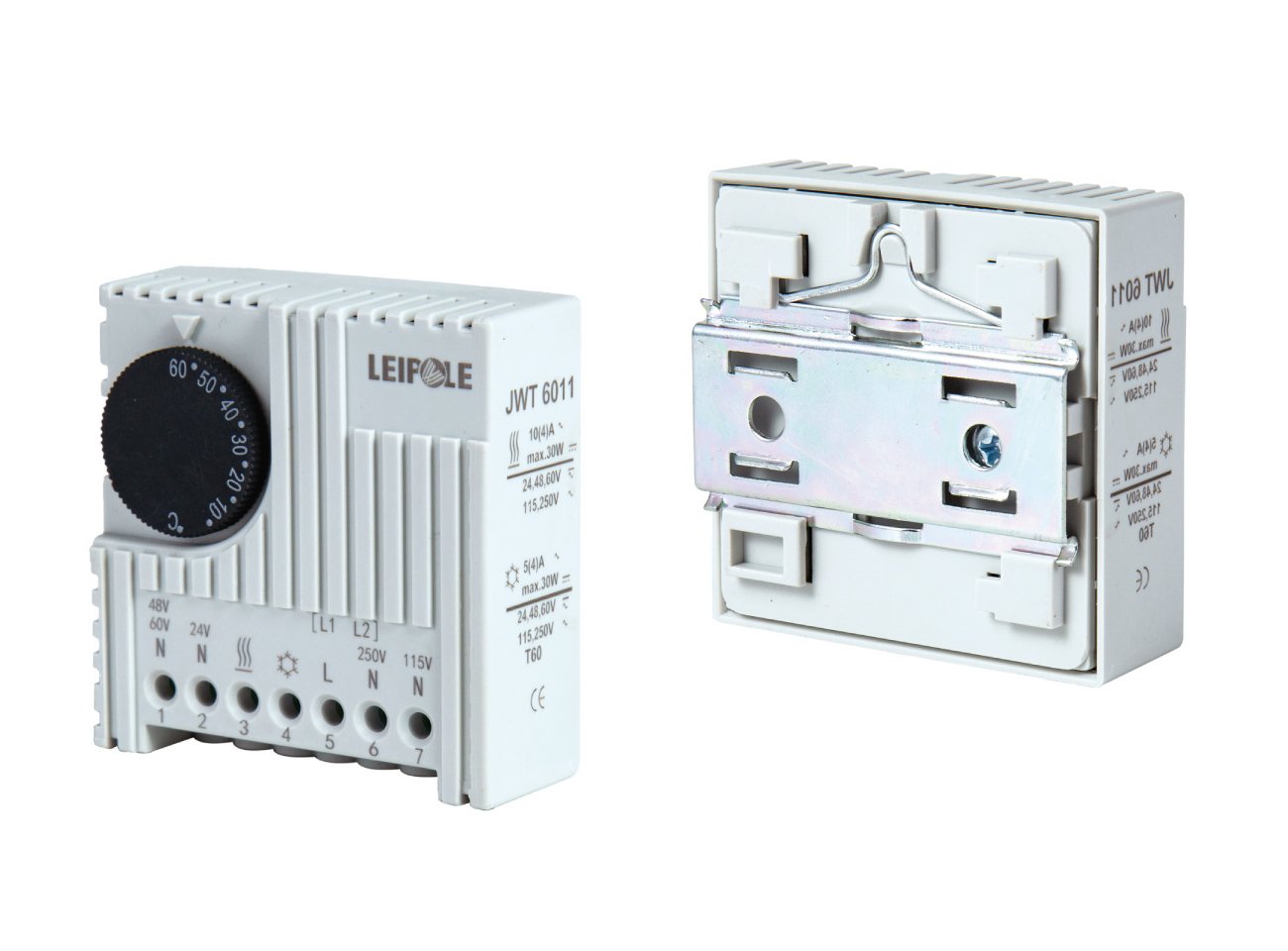

LEIPOLE JWT 6011 Mechanical Thermostat, Temperature Controller, IP20, DIN Rail Mount for Enclosure Fans & Heaters
LEIPOLE JWT 6011 mechanical thermostat with bimetallic sensing, adjustable temperature, IP20 protection, DIN rail mount; reliably controls fans and heaters to stabilize enclosure temperature and prevent condensation.
LEIPOLE JWT 6011 is a mechanical adjustable thermostat used for automatic temperature control inside electrical enclosures. It reliably controls cooling fans, heaters or heat exchangers to keep equipment within a safe operating temperature range, preventing overheating, condensation and premature failure.
Key Features & Advantages
Adopts high-sensitivity bimetallic sensing element for stable and accurate temperature response.
Wide adjustable temperature range for flexible matching with different cabinet environments.
IP20 protection grade and UL94 V0 flame-retardant housing for industrial safety.
Standard 35mm DIN rail installation for fast, tool-light setup.
Wide voltage compatibility supports global AC/DC power supply systems.
Compact size, lightweight, ideal for various control cabinets and distribution boxes.
Technical Specifications
Equipped with bimetallic temperature sensing, mechanical contact switching, IP20 protection, flame-retardant ABS shell, 35mm DIN rail mounting, wide operating and storage temperature range, with CE certification.
Typical Applications
Temperature control for cooling fans and filter fans in electrical control cabinets
Automatic on/off control for cabinet heaters to prevent condensation and frost
Temperature monitoring and regulation for automation equipment and PLC cabinets
Thermal management for outdoor communication cabinets and terminal boxes
Temperature protection for power distribution boxes, switchgear and instrument compartments
Heat regulation for precision electronics, sensors and compact equipment enclosures
Product Attribute
Value
JWT 6011 Parameters
Model
JWT 6011
Product Name
Thermostat
Certification
CE
IP Rating
IP20
Sensing Element
Bimetallic
Order
2021.001
Shock Load Permissible
K1.5-3 (heated) AC 10 (4) A, K1.5-4 (plus cooling) AC 5 (4) A
