Compact Electrical Control Fans providing efficient, IP54-rated cooling

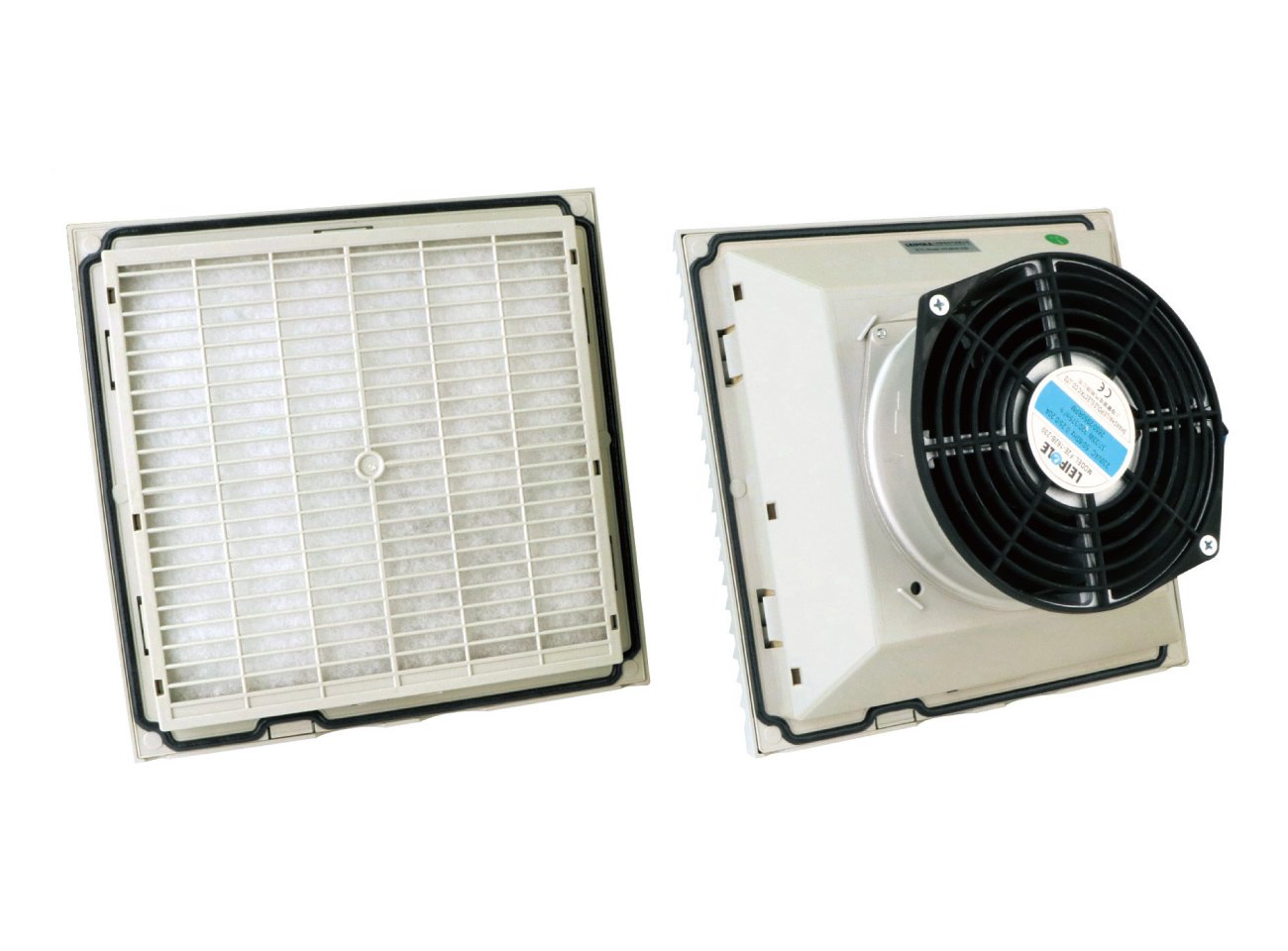

These high-performance Electrical Control Fans (model FKL6625.230) feature an ultra-slim profile designed for quick installation. Equipped with a reliable 230V shaded pole motor, rain-protective louvers, and a G2 filter, they deliver optimal airflow and IP54 protection for safe operation.
| Technical Parameter | Specification |
|---|---|
| Model Number | FKL6625.230 (150B.230) |
| Order Number | 2013.059 |
| Product Color | RAL7035 |
| Usage Form | Side-mounted |
| Supporting Axial Fan | F2E-150B-230 |
| Motor Type | Shaded pole motor |
| Operating Voltage Range | 115V – 235V |
| Rated Voltage & Frequency | 230V AC | 50Hz / 60Hz |
| Rated Current | 0.29A ±10% (50Hz) / 0.27A ±10% (60Hz) |
| Power | 43W ±10% (50Hz) / 40W ±10% (60Hz) |
| Free Airflow | 370m³/h ±5% (50Hz) / 320m³/h ±5% (60Hz) |
| Combined Airflow (with filter) | 260m³/h ±5% (50Hz) / 225m³/h ±5% (60Hz) |
| Noise Level | 48 dB (50Hz) / 52 dB (60Hz) |
| Protection Class | IP54 (Equipped with 12mm thick G2 filter cotton) |
| Filtration Efficiency | G2 73% |
| Temperature Range | Operating: -10℃ ~ +55℃ | Storage: -15℃ ~ +60℃ |
| Overall Dimensions | 255mm x 255mm x 120mm |
| Opening Dimensions | 224mm x 224mm |
| Depth into Cabinet | Approximately 106mm |
| Filter Material & Rating | ABS | Flame Retardant Rating: UL94-V2 |
