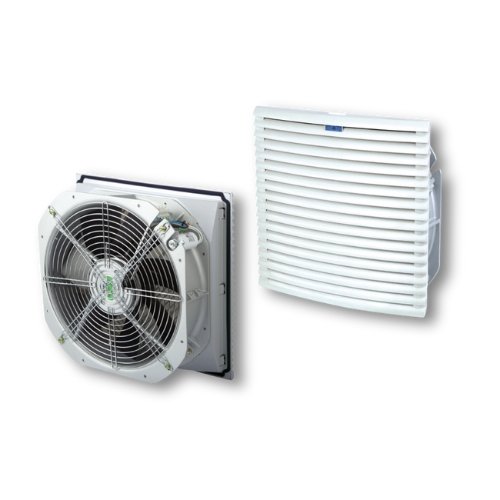

Large Flow Filter Fan 1800m³/h (1060CFM) Industrial | FK9926.115-D

LEIPOLE’s FK99 series fan and filter solutions are a popular choice for electrical cabinet cooling, with a design focused on user experience and efficient performance. This series of products features an innovative front cover design that allows users to easily open the front cover to quickly replace the filter pad. This convenient maintenance method is particularly important for industrial environments where the filter pad needs to be cleaned or replaced regularly due to dust clogging.
  • Part number: FK9926.115-D
  • Order code: 2023.042
  • Color code: RAL7035
Add to cart
Comprehensive Fan Filter for Precision Ventilation and Filtration Applications

  • Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation
  • Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance
  • Specialized box fan filter assemblies for industrial and agricultural air filtration needs
  • Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments
  • Customizable control panel ventilation fans with various mounting options and airflow configurations
  • Available airflow ranges from 20 CFM to 500 CFM to meet diverse application requirements
  • Easy-to-install designs with tool-free mounting options for quick maintenance
  • Pre-configured FFU packages with optimized filter media for specific contamination control needs
  • Temperature and airflow monitoring options available for critical applications



wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 Part Number FK9926.115-D
2 Color RAL7035
3 Order Code 2023.042
4 Fan Model F2E-320B-115
5 Rate Voltage 115V AC
6 Air Flow 1044m³/h (IP54)
7 Rated Current 1.00/1.20A
8 Power 105/125W
9 Motor Type Electric Capacitance
10 Kiva 04/12/2025 02:52 AM Kiva 04/12/2025 02:52 AM Noise Level 68/70 dB
11 Exit Filter FK9926.300
12 Dimension 320*320mm
13 Cut-out Size 292x298mm
