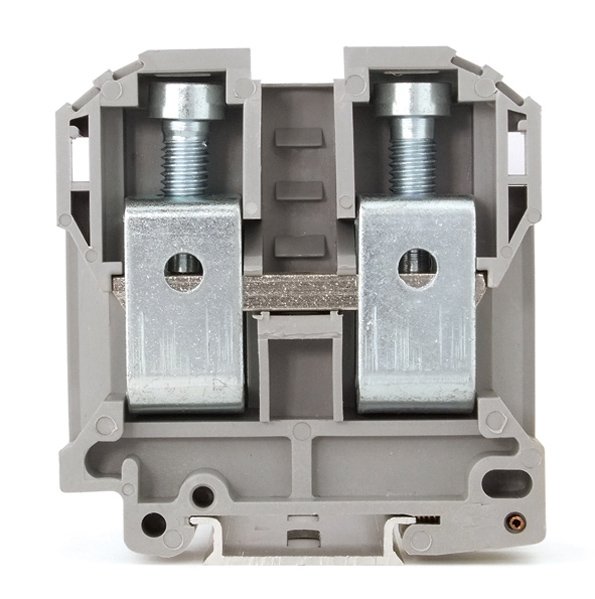

LEIPOLE JXB-70/35 screw connection terminal block, DIN rail mount, 2.5–70mm² cross section, industrial high-power wiring component

LEIPOLE JXB-70/35 Terminal Block, Industrial Electrical Connection, 207A 800V

Name: LEIPOLE JXB-70/35 Terminal Block, Industrial Electrical Connection, 207A 800V
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

LEIPOLE JXB-70/35 terminal block delivers stable extra-high-power industrial electrical connections with 207A/800V ratings, 2.5–70mm² wire capacity, UL 94 V0 flame resistance and secure screw connections. It fits standard DIN rails and suits extra-high-current industrial power systems.

Add to cart

Product Overview

LEIPOLE JXB-70/35 terminal block is an industrial high-power electrical connection component manufactured in compliance with IEC 60947-7-1 standards. It adopts a heavy-duty screw connection structure with optimized dimensions, providing stable and safe high-power wiring for heavy-duty industrial electrical systems.

Key Features & Advantages

Rated 207A/800V, supports wire cross-section range from 2.5mm² to 70mm²
UL 94 V0 inflammability class ensures high-level safety in high-power working conditions
Standard screw connection guarantees stable electrical contact and long service life
Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for flexible installation
Supports matching accessories including dedicated end covers, jumper bars, end clamps and marking labels

Typical Applications

Extra-high-power manufacturing machinery and production equipment
Industrial high-power automation drive and control cabinets
High-power distribution cabinets and electrical enclosures
Heavy-duty industrial equipment electrical control panels
Extra-high-current industrial power wiring and circuit management

Product Attribute	Value
JXB-70/35 Parameters
Model	JXB-70/35
Product Type	Terminal Block
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Order Number	1011.074
Size	T22×H79×W75
Rated Current/Rated Voltage	207A/800V
Cross Section	2.5~70mm²
Connection Type	Screw Connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
