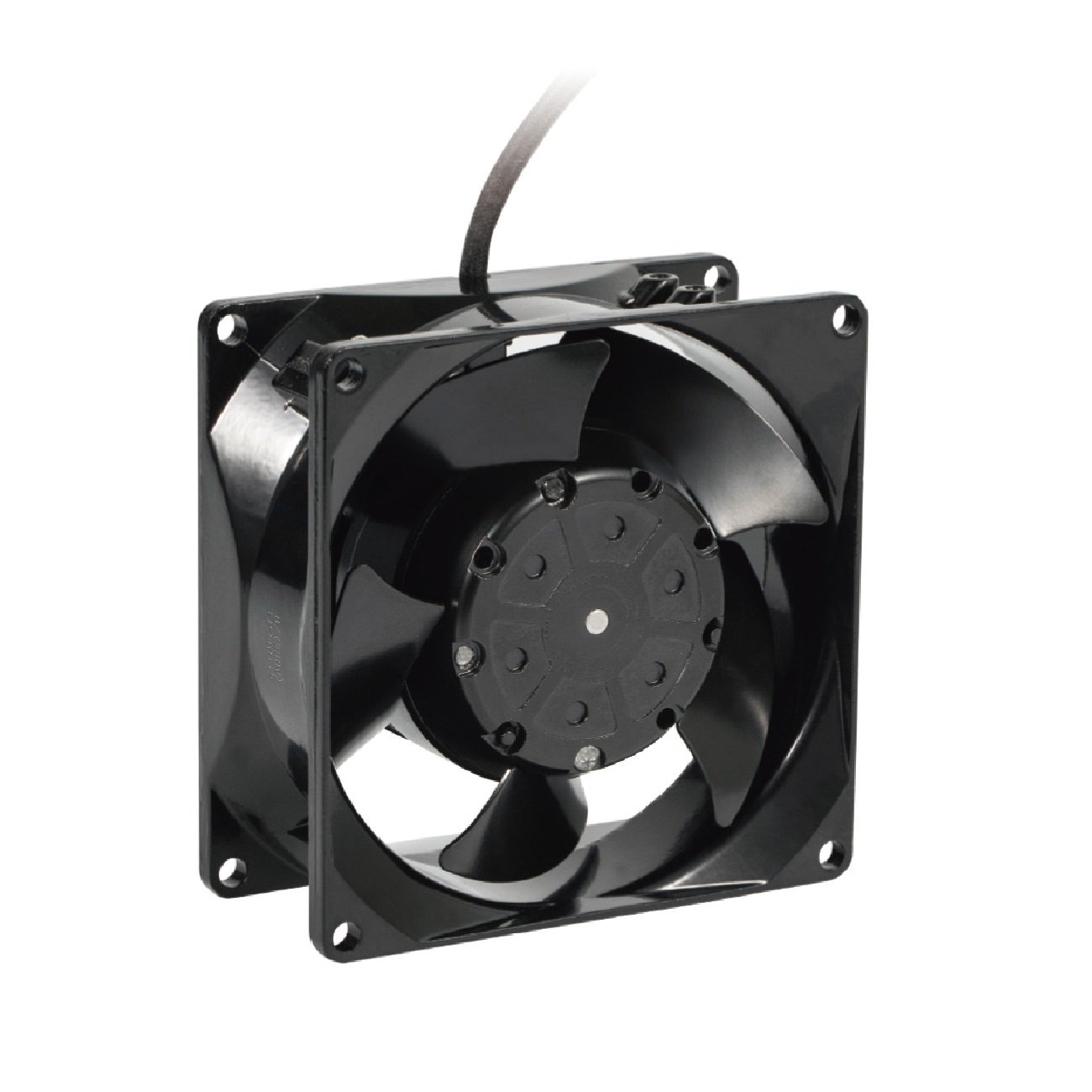

LEIPOLE F2E-90B-230-B industrial axial cooling fan, ball bearing structure, 90.5x90.5x39mm size, IEC Grade B insulation, low-noise cabinet ventilation unit

LEIPOLE F2E-90B-230-B 92x92mm Series Axial Cooling Fan, Ball Bearing, 230V

Request a quoteWhatsApp us

90.5×90.5x39mm industrial axial cooling fan with ball bearing, 230V AC power supply, 90.5m³/h airflow, IEC Grade B insulation rating, low 36dB noise, stable continuous operation for electronic device and cabinet heat dissipation.

  • Part number: F2E-90B-230-B
  • Order code: 2018.071

Product Overview

LEIPOLE F2E-90B-230-B is a high-performance square axial cooling fan from the 92x92mm series. It is designed for reliable forced heat dissipation and internal airflow circulation for compact industrial electrical enclosures, electronic devices and power equipment. Its stable axial airflow structure effectively expels accumulated heat, maintains steady device operating temperature and extends service life of enclosed electronic components.

Core Product Features

  • Premium ball bearing mechanical structure, delivering low operational wear, long service cycle and stable continuous running performance
  • Compliant with IEC61858 Grade B insulation standard, providing reliable electrical safety protection for industrial equipment operation
  • Compact overall dimension of 90.5×90.5x39mm, fitting narrow-space cabinet and device internal heat dissipation installation scenarios
  • Optimized aerodynamic blade design achieves balanced airflow output and low noise emission for unattended indoor equipment deployment
  • Stable structural durability supports 24/7 continuous industrial operation and long-term stable ventilation duty

Electrical & Operational Attributes

  • Rated power input: AC 230V, 50/60Hz
  • Rated current: 0.08/0.07A, rated power consumption: 13/11W
  • Rotational speed: 2750/3250 r/min, free-blowing airflow capacity: 90.5m³/h
  • Low operational noise level of 36dB, suitable for quiet indoor industrial equipment room deployment
  • Reliable insulation grade and mechanical stability adapting to diversified electronic device thermal management requirements

Applicable Industries

This axial cooling fan meets ventilation and heat dissipation demands across wide industrial application scenarios:
  • Industrial control cabinet and low-voltage electrical enclosure internal cooling
  • Power supply equipment, inverter and electronic power device thermal dissipation
  • Automation machinery and small production equipment internal component heat evacuation
  • Communication device and server cabinet auxiliary ventilation cooling
  • Industrial electronic equipment retrofitting and original cooling system upgrading projects
Product Attribute Value
F2E-90B-230-B Parameters
Model F2E-90B-230-B
Order number 2018.071
Motor type –
Bearing Ball
Voltage (V) 230
Frequency (Hz) 50/60
Current (A) 0.08/0.07
Power (W) 13/11
Speed (r/min) 2750/3250
Air Flow (m³/h) 90.5
Noise (dB) 36
Certification CCC
Weight (g) 400
