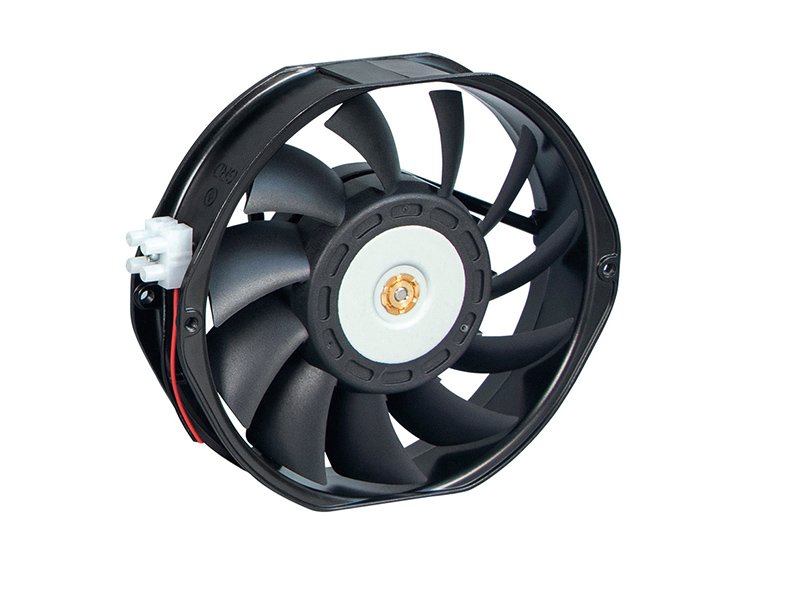

LEIPOLE F2E-162B-24-B 162x55mm Series DC Axial Cooling Fan, 24V DC
162x55mm DC industrial axial fan with ball bearing, 24V DC power supply, 290m³/h airflow, anti-corrosion die-cast aluminum frame, IEC Grade B insulation, CE certified stable operation for low-voltage cabinet heat dissipation.
- Part number: F2E-162B-24-B
- Order code: 2018.035
Product Overview
LEIPOLE F2E-162B-24-B is a DC-powered industrial axial cooling fan belonging to the 162x55mm series. It is designed for stable forced heat dissipation and internal airflow circulation for 24V DC-powered industrial electrical enclosures, DC power equipment and low-voltage electronic devices. Its robust structure efficiently expels accumulated internal heat and maintains steady operating conditions for enclosed DC industrial components.
Core Product Features
- Die-cast aluminum alloy frame with black anti-corrosion surface treatment, providing excellent structural durability and environmental corrosion resistance
- Premium ball bearing structure, ensuring low operational wear, long service life and stable continuous running performance
- Compliant with IEC61858 Grade B insulation standard, delivering reliable electrical safety protection for low-voltage DC equipment operation
- Qualified CE safety certification, with robust mechanical performance supporting long-term unattended continuous operation in industrial scenarios
Electrical & Operational Attributes
- Rated power input: DC 24V
- Rated current: 0.30A, rated power consumption: 6.72W
- Rotational speed: 2000 r/min, free-blowing airflow capacity: 290m³/h
- Operational noise level: 48dB
- Unit net weight: 500g
Applicable Industries
This DC axial cooling fan meets thermal management demands across diversified industrial application scenarios:
- 24V DC industrial control cabinet and low-voltage electrical enclosure internal cooling
- DC power supply, inverter and low-voltage electronic device heat evacuation
- Automation machinery and intelligent equipment internal component heat dissipation
- Communication base station and DC power system auxiliary ventilation cooling
- Low-voltage industrial equipment cooling system retrofitting and original fan upgrading projects
| Model | F2E-162B-24-B |
| Order number | 2018.035 |
| Motor number | – |
| Bearing | Ball |
| Voltage (V) | DC 24 |
| Frequency (Hz) | – |
| Current (A) | 0.30 |
| Power (W) | 6.72 |
| Speed (r/min) | 2000 |
| Air Flow (m³/h) | 290 |
| Noise (dB) | 48 |
| Certification | CE |
| Weight (g) | 500 |
