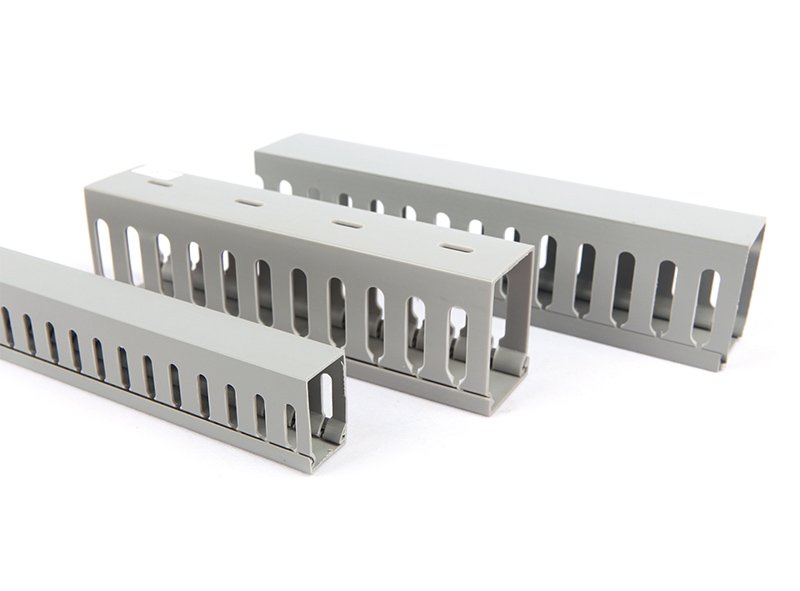

LEIPOLE 5R100100 Wiring Duct, 100x100mm, for Industrial Electrical Enclosure Cable Management

Request a quoteWhatsApp us

LEIPOLE 5R100100 wiring duct comes in 100x100mm size, made of lead-free rigid PVC with UL94 V-0 flammability rating. It has wide slot finger design for high rigidity, works with various wire bundles, and includes DIN 43 659 mounting holes for reliable installation.

  • Part number: 5R100100
  • Color code: Gray RAL7030, Blue RAL5015, White RAL9016, Black RAL9005
Add to cart

Product Overview

LEIPOLE 5R100100 wiring duct is manufactured using lead-free rigid PVC material. It features a wide slot and finger structure that boosts sidewall rigidity and accommodates diverse wire bundle sizes. The duct comes with DIN 43 659 mounting holes and is packed with a matching cover.

Key Features & Advantages

  • Lead-free rigid PVC build for compliant industrial usage
  • Wide slot and finger design delivers stronger sidewall rigidity
  • UL94 V-0 flammability rating for safe operation
  • UL recognized for continuous use at 50°C
  • Precisely drilled DIN 43 659 mounting holes
  • Duct and cover supplied as one complete package

Applications

Ventilation technology

Used for orderly cable routing in ventilation system control enclosures

Refrigeration

Supports cable management in refrigeration unit electrical cabinets

Machinery and systems

Applied for cable arrangement in industrial machinery control systems

Electromobility

Suitable for cable organization in electromobility electrical components

Renewable energies

Deployed for cable management in solar and wind energy systems
Product Attribute Value
5R100100 Wiring Duct Parameters
Model 5R100100
Product type Wiring Duct (Cable Management Trunking)
Material Lead-free rigid PVC
Flammability rating UL94 V-0
Continuous use temperature 50°C (122°F), UL Recognized
Size (W x H) 100 x 100 mm
Base type Large Base
Standard length 2 meters
Slot design Wide slot/finger design for enhanced sidewall rigidity and compatibility with larger wire bundles
Mounting standard Pre-punched with DIN 43 659 mounting holes
Color options Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
