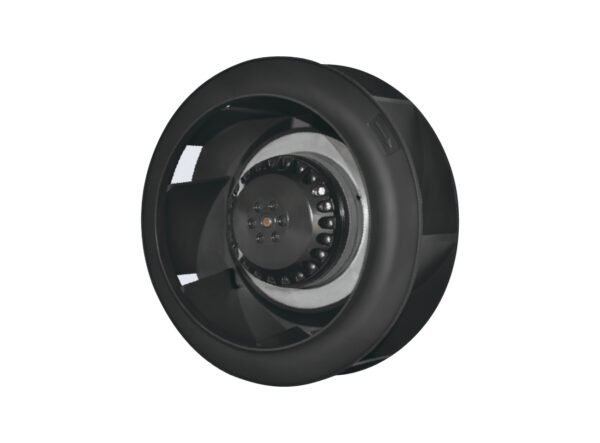

LEIPOLE industrial centrifugal fan 102P-170

170FLW2: 450m³/h Centrifugal Fans and Blowers, 220V

Request a quoteWhatsApp us

Centrifugal fans, also known as centrifugal blowers or centrifugal exhaust fans, are essential components in various industrial and commercial systems. These devices are designed to move air or gases efficiently, making them indispensable in applications requiring ventilation, cooling, or air circulation. In this article, we’ll explore the functionality, uses, and applications of centrifugal fans, including centrifugal vent systems.

  • Part number: 170FLW2
  • Order code: 2019.003

Centrifugal Fans & Blowers Industrial Ventilation Solutions

-Professional centrifugal blower fan with Shaded Pole Motor technology:
Innovative PP+GF impeller design ensures optimal performance and service life
-All-round environmental adaptability:
Operating temperature range: -30°C to +55°C
Humidity tolerance range: 0% to 95%
-Advanced motor protection features:
Impedance protection system
Automatic thermal recovery protection
Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz)
Industrial grade insulation in accordance with IEC61858 Grade B standard





wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 Part Number 170FLW2
2 Order Code 2019.003
3 Rate Voltage 220V
4 Air Flow 450m³/h
5 Speed 2400 r/min
6 Static Pressure 275PA
7 Rated Current 0.30A
8 Input Power 60W
9 Motor Type Capacitor Start Induction Motor
10 Noise Level 56dB
11 Dimension Ø175x69.1mm
12 Weight 1240g
13 Impeller PA6+GF
14 Operating temperature -40°C~+80°C
15 Humidity range 0%~95%

Compare all models in Centrifugal fans
