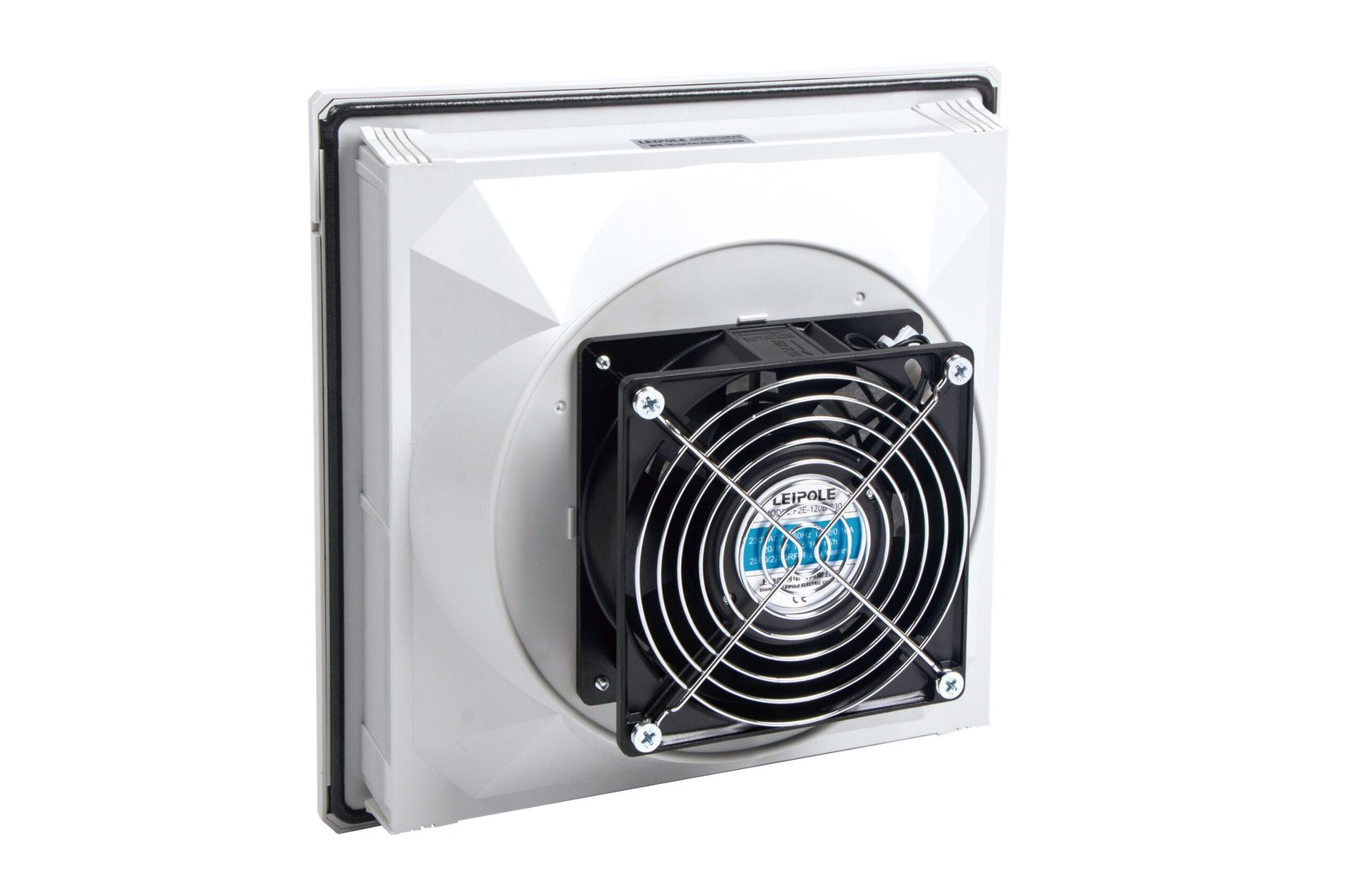

LEIPOLE FKL5525-120.115 Enclosure Fan Filter, IP54/55, 115V, 224x224mm Cut-out
IP54/55 panel-mounted enclosure fan filter, 115V AC power supply, ball bearing motor, 224x224mm cut-out, configurable G3/G4 filtration, wide temperature adaptability
LEIPOLE FKL5525-120.115 is a compact panel-mounted fan filter unit designed for thermal management and dust contamination protection inside industrial electrical enclosures. It integrates continuous forced air circulation and efficient particulate filtration to stabilize internal operating temperature, block airborne pollutants, and extend the service life of enclosed electrical and electronic components.
Core Product Features
Built with durable industrial structural housing, available in dual color options of RAL7035 and RAL7032
Adopts ball bearing motor structure for stable long-duration continuous operation and extended service cycle
Dual-tier ingress protection rating of IP54/55, providing robust defense against ambient dust accumulation and water splash intrusion
Configurable filter system: standard G3 filter media for routine dust interception, with optional G4 high-efficiency pleated filter for enhanced fine particle filtration performance
Standardized 224x224mm panel cut-out size for universal enclosure installation compatibility

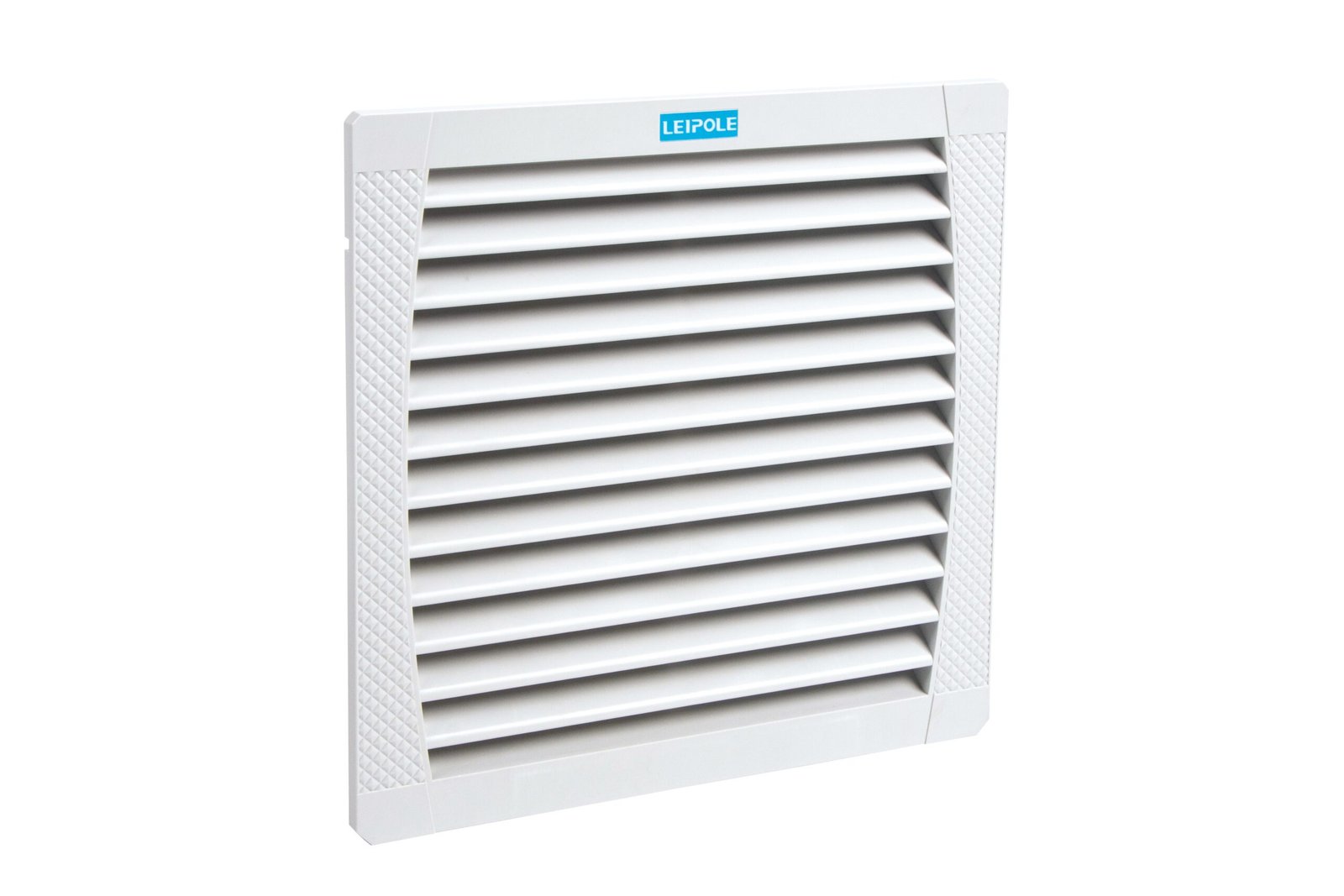

Matched dedicated exit filter model FKL5525.300, forming a complete closed-loop ventilation circulation system for sealed industrial enclosures
Broad ambient temperature adaptability, maintaining steady operational performance under fluctuating environmental conditions
Electrical & Operational Attributes
Compatible with North American standard AC power grid system
