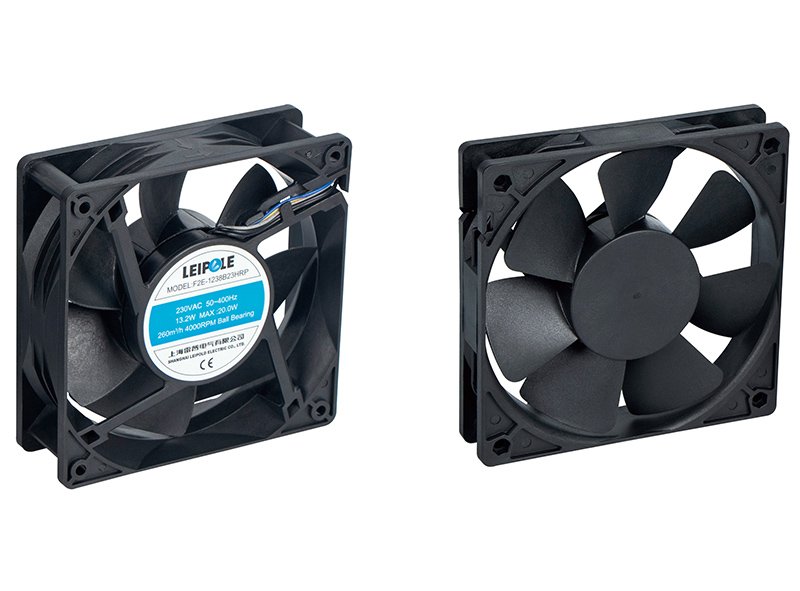

LEIPOLE F2E‑1225B23VRP is a slim 120×120×25.3mm EC axial fan with ball bearing, RD+PWM intelligent control, 230V AC, designed for high‑efficiency forced ventilation and precise thermal control in electrical cabinets, automation panels, telecom enclosures, and compact electronic equipment.
EC motor with Rotation Detection (RD) + PWM speed regulation for intelligent and energy‑saving control.
Dual ball bearing for long service life and stable low‑noise operation.
Compliant with IEC61858 Grade F insulation, high withstand voltage up to AC 1800V/1min.
Wide voltage & frequency input (230V AC, 50~400Hz) for global compatibility.
CE certified, UL94‑V0 flame‑retardant materials for safety and reliability.
Electrical cabinets & automation control panels
Telecommunication cabinets & data communication equipment
EV chargers & renewable energy inverter cabinets
Industrial automation equipment & compact cooling systems
Office & industrial electronic equipment thermal management
| Product Attribute | Value |
|---|---|
| F2E-1225B23VRP Parameters | |
| Model | F2E-1225B23VRP |
| Order Number | 2029.001 |
| Dimensions | 120×120×25.3mm |
| Motor Type | EC |
| Bearing | Ball |
| Voltage | AC 230V |
| Frequency | 50~400Hz |
| Power | 2.6W, Max: 3.5W |
| Speed | 2600r/min |
| Air Flow | 120m³/h |
| Noise | 37dB |
| Weight | 180g |
| Function | Rotation Detection + PWM |
| Certification | CE |
